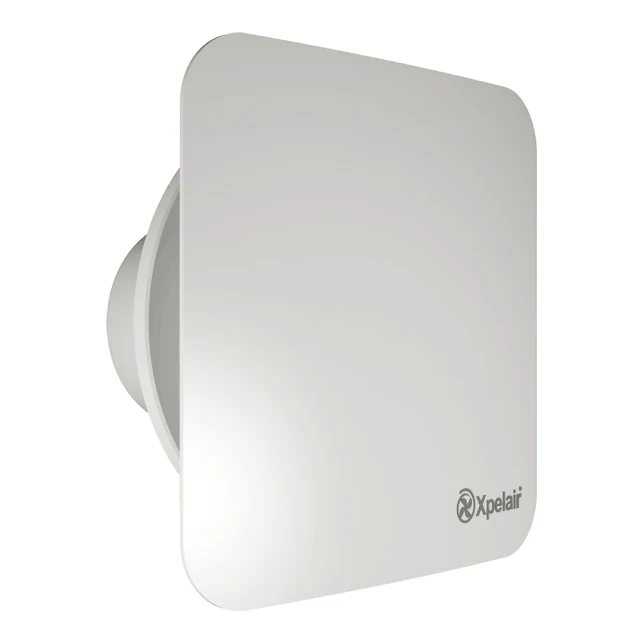

Xpelair Simply Silent Contour Timer And Humidistat Controlled Square Extractor Fan  150mm – C6HTS

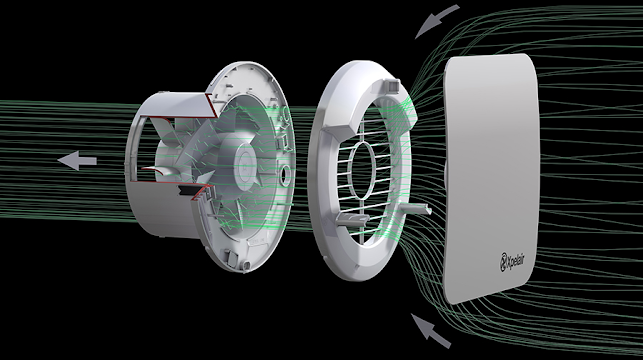

Most of the noise created by an extractor fan is generated by either the motor or surprisingly by the moving air itself. Extra quiet motors have been coupled with long-lasting, good quality parts to remove as much mechanical noise as possible, they call this Ghost Air Movement Technology. With built-in humidistat and timer this really is a clever fan. It can sense when humidity levels are too high and automatically kicks in, running until the pre-set timer deactivates it.

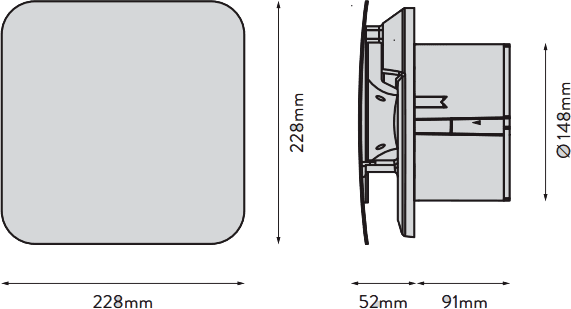

The C6HTS benefits from a square 150mm (6 inch) fascia which connects to the lighting circuit for the room. Also featured is the So Simple quick-fit clamp, this enables the fan to be fitted easily to panels or ceilings. Cable slot sizes have also been maximised to enable simple wiring.

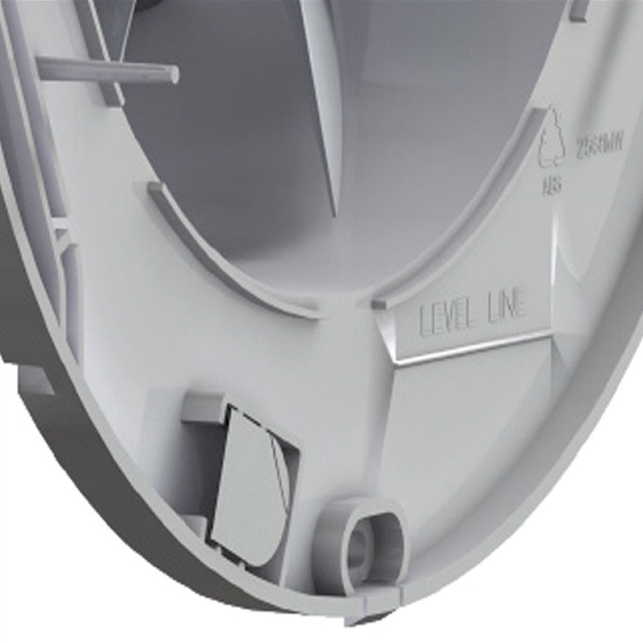

Adjustable fixing points for screws ensure a perfect fan alignment during installation.

As a final touch of quality the extractor fan is covered with a brilliant 2 year guarantee.



Features and Benefits:

• The simple but effective design creates a discreet unit suitable for any domestic kitchen installation.
• Ghost Air Movement Technology ensures this is one of the quietest fans during operation.
• Compliant with building regulations Parts F and L.
• Installation can be done in either panels, walls or ceilings for added flexibility.
• One of two speeds must be selected during installation for extraction rates of either 60l/s or 69l/s.
• Bigger sections to knock out for easier wiring.
• Brilliant 2 year guarantee provided by Xpelair.

Technical Data:

• Extract Performance: 216/248 m3/h
• Sound Pressure Level: 42.3/44.6 dbA@3m
• Electrical Power Rating: 12.9/28.4 W
• Specific Fan Power: 0.22/0.41 W/I/s
• Two Speeds
• IPX Rating: 4
